Grafik: S. Engel Engineers Ltd.
Tel Aviv
Location
Stadtzentrum Tel Aviv, Israel
Construction year2023 — 2024

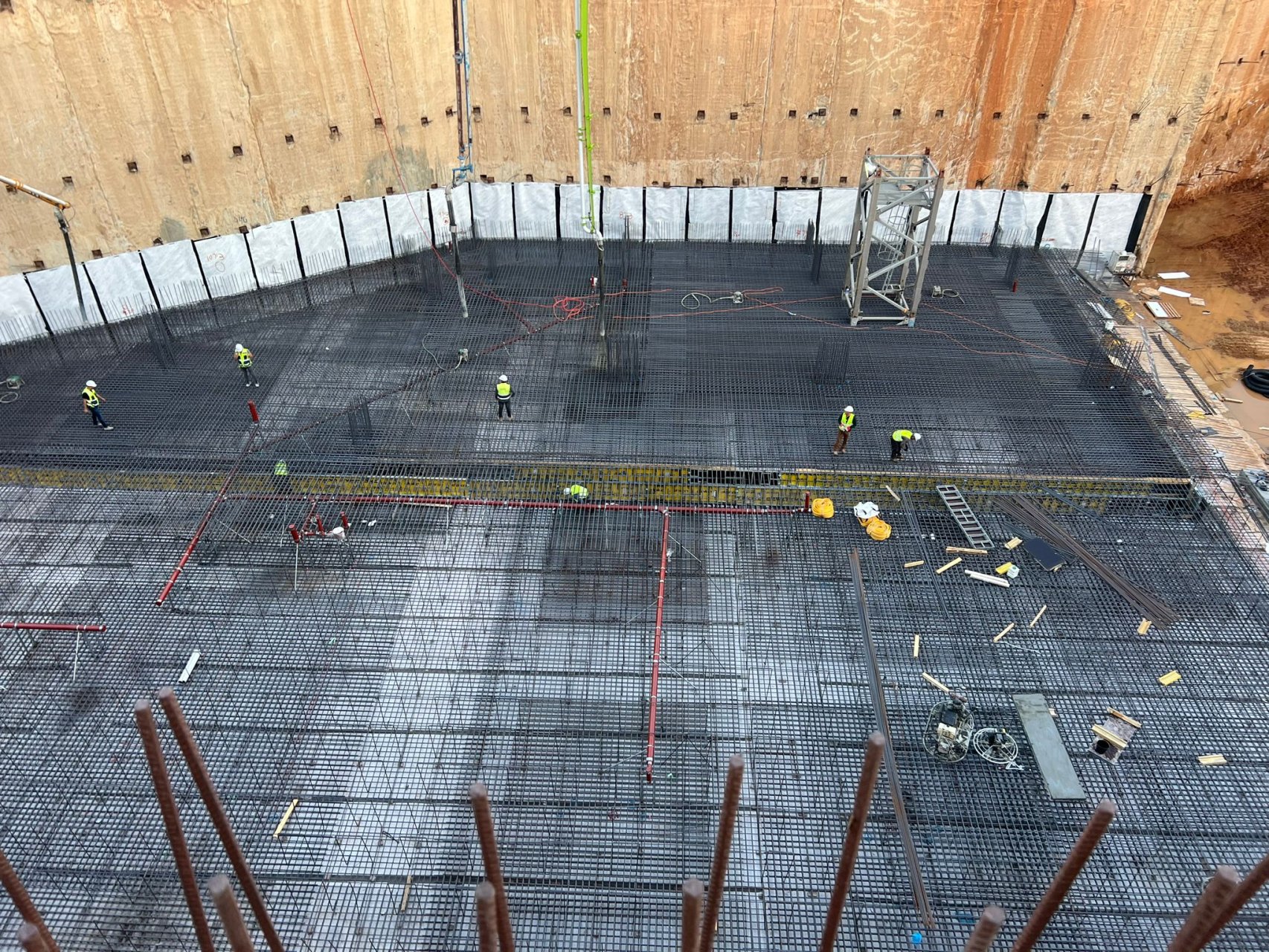

Project descriptionCombined reinforcement for the foundation slab of a 15-storey commercial building.
Optimisation with SFRC
- Optimisation/reduction of the slab thickness compared to the original solution
- Use of steel fibres primarily due to crack width limitation and increase of punching resistance (elimination of punching strips)
- Logistical advantage due to cramped space in the middle of the city of Tel Aviv
Slab thickness
100 - 150 cm
Executioncombined reinforcement
ConcreteB45 (C35/45)
Dosage35 kg/m³
Fibre typeDramix® 4D 65/60BG
Original solution
S. Engel Engineers Ltd.
Cubatureca. 7.000 m³
