Grafik: STRABAG/ZIPP BRATISLAVA spol . s r.
VW Bratislava
Location
Construction year
Construction year
2014

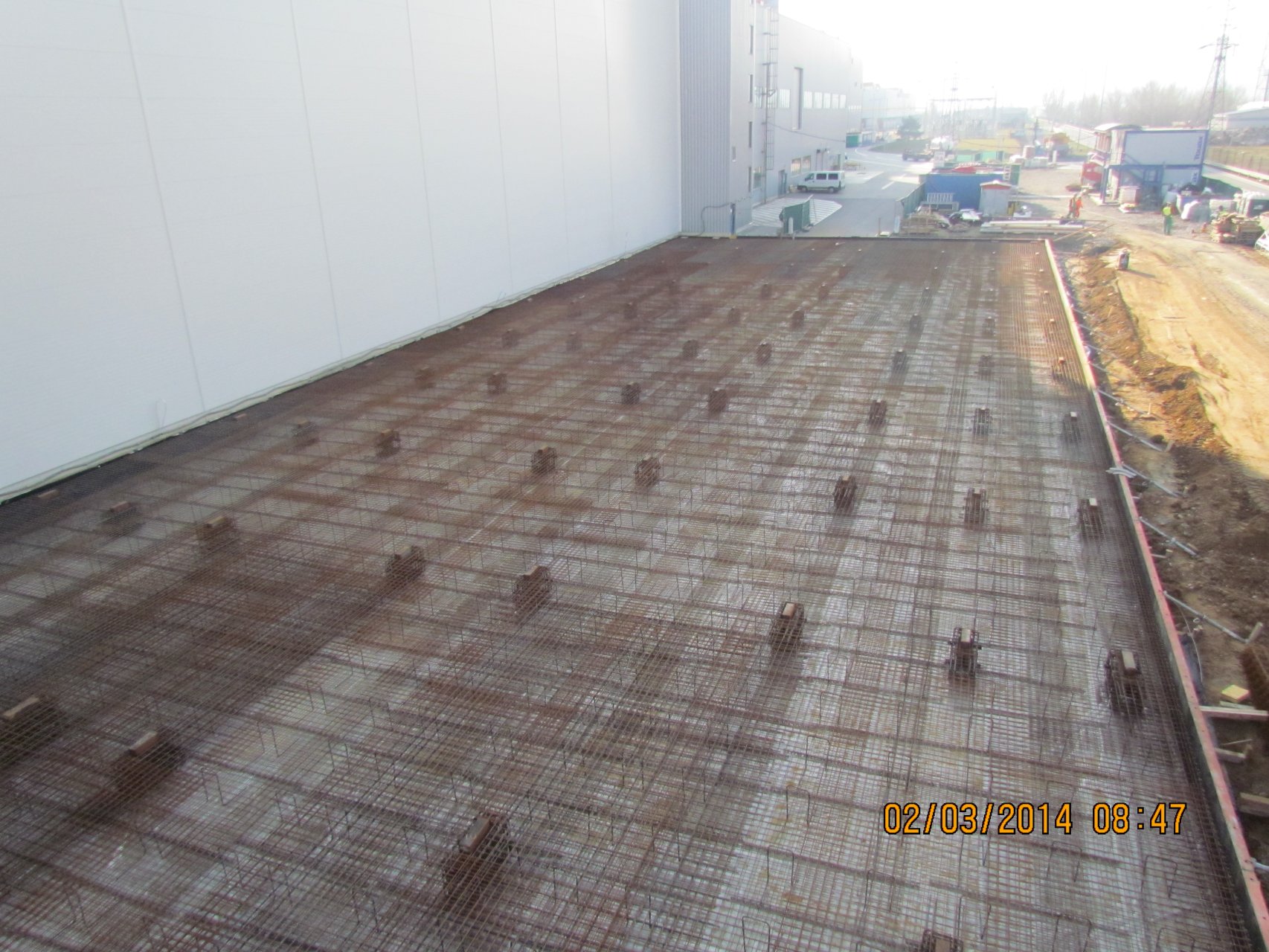

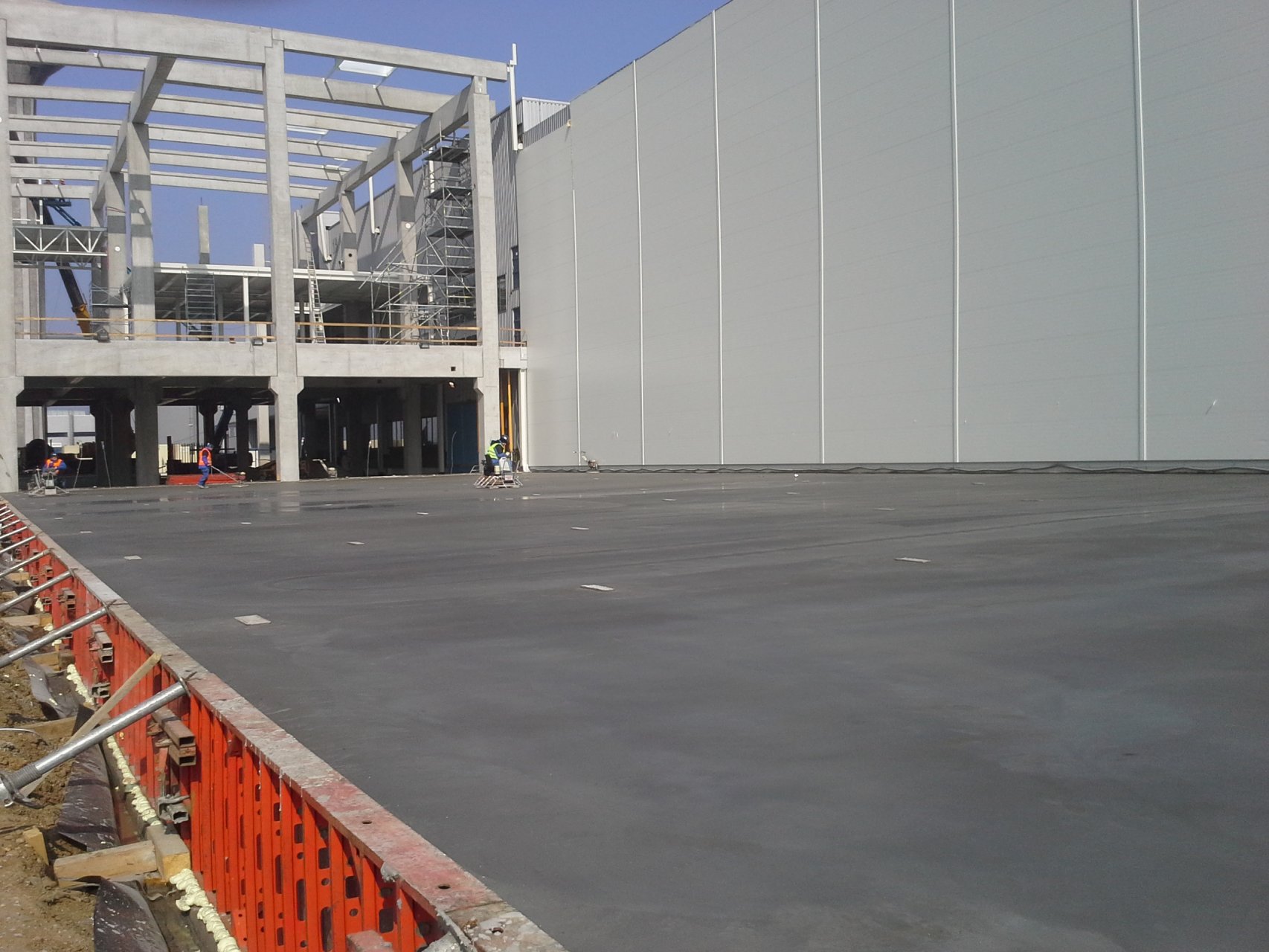

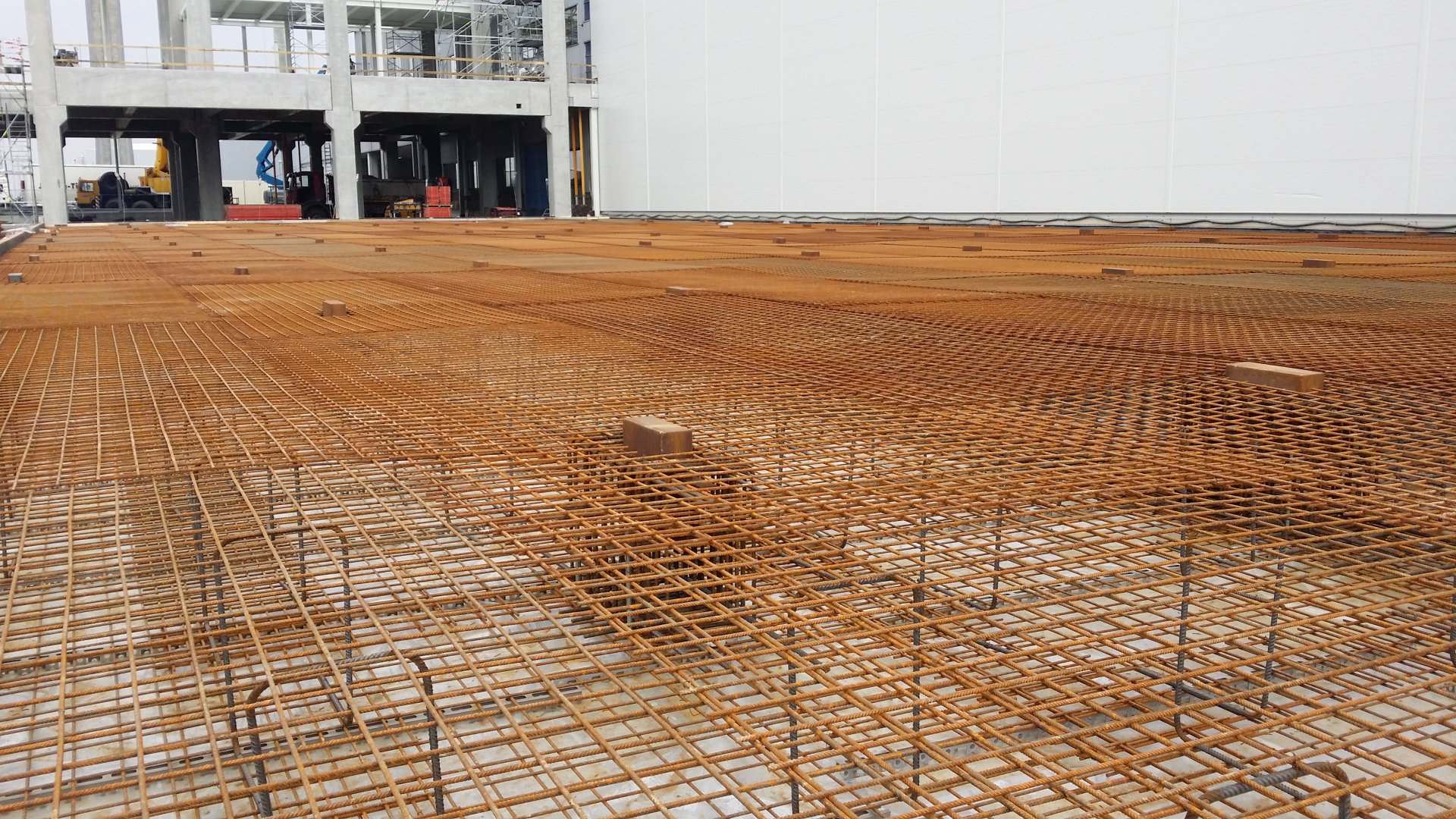

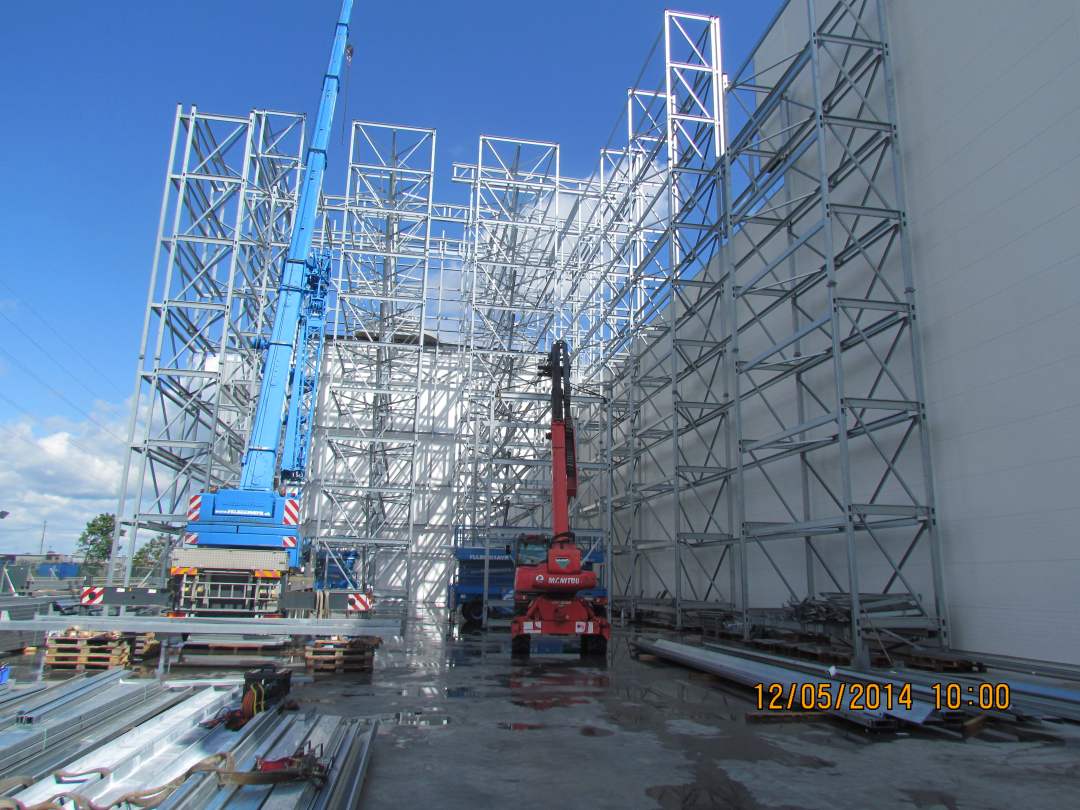

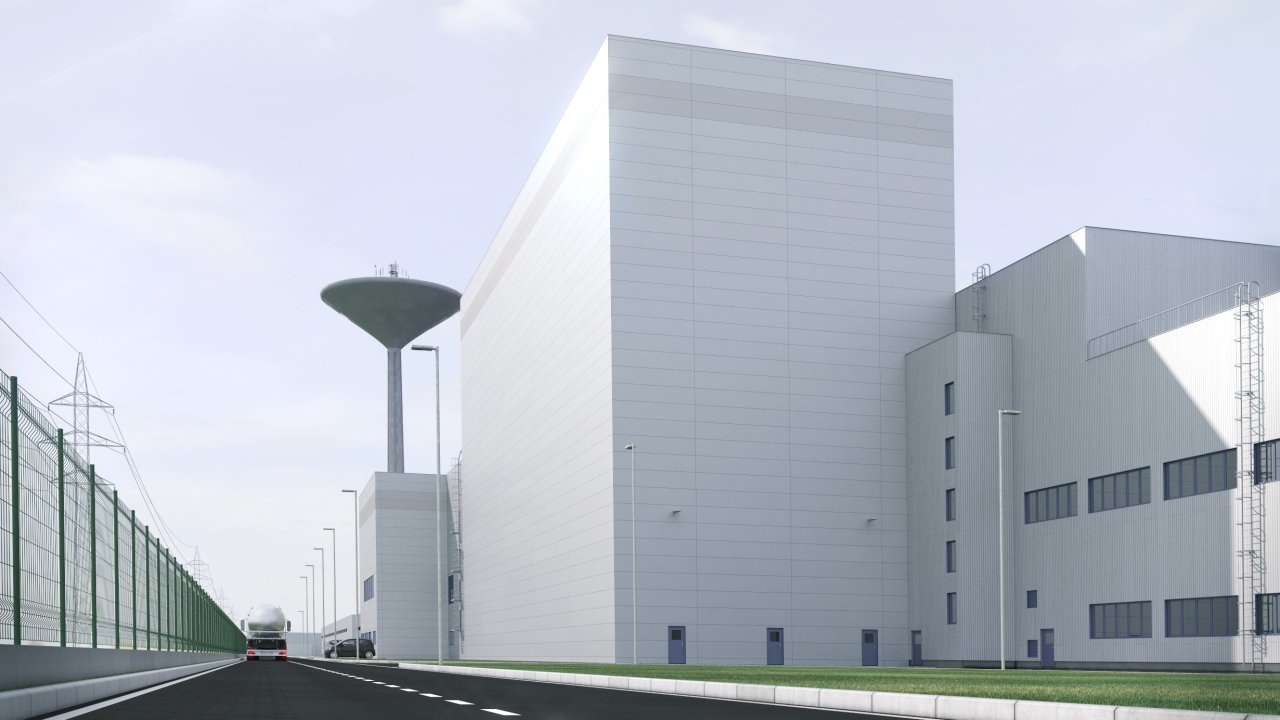

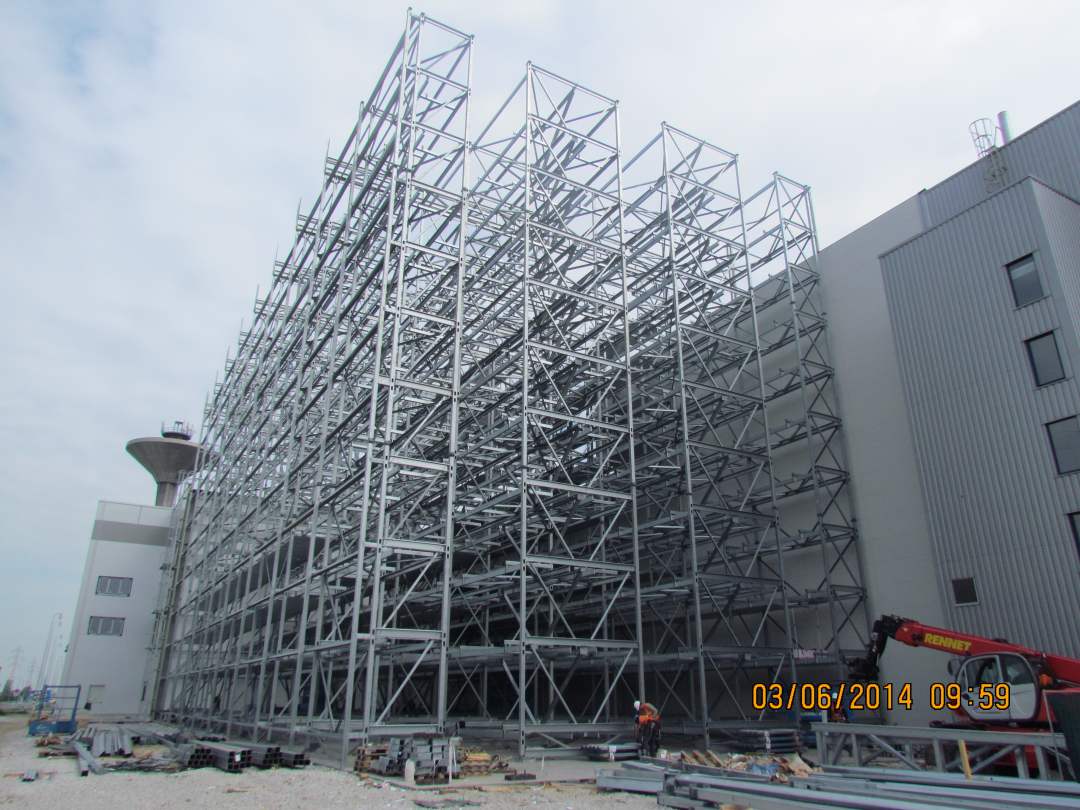

Project descriptionCombined reinforcement for a foundation slab for a Clad-Rack warehouse in silo construction for storing car bodies.
Optimisation with SFRC
- Speed up the construction process due to the use of combined reinforcement
- Significant reduction of the crack width-limiting reinforcement -> optimal constructability / economic aspect
-
Seamless design -> elimination of all joints
Slab thickness
65 cm
Executioncombined reinforcement
ConcreteC30/37
Dosage30 kg/m³
Fibre typeDramix® 5D 65/60BG
Owner
Volkswagen Slovakia a.s.
General contractorSTRABAG/ZIPP BRATISLAVA spol . s r.
Original solutionBF Partners, Slovakia
Floor area1.380 m²
Guirguis, P.
Fundamentplatten aus Stahlfaserbeton/Kombinationsbewehrung für Hochregalläger in Silobauweise
Bauingenieur Heft 6/2014. / www.bauingenieur.de
Download PDF
Fundamentplatten aus Stahlfaserbeton/Kombinationsbewehrung für Hochregalläger in Silobauweise
Bauingenieur Heft 6/2014. / www.bauingenieur.de
Download PDF
